Installation using Rancher

Introduction

If you’re not using the Rancher Management Console/UI to install your clusters, head over to the installation guides for standalone RKE clusters.

Rancher comes with official support for Cilium. For most Rancher users, that’s the recommended way to use Cilium on Rancher-managed clusters.

However, as Rancher is using a custom rke2-cilium Helm chart with independent release cycles, Cilium power-users might want to use an out-of-band Cilium installation instead, based on the official Cilium Helm chart, on top of their Rancher-managed RKE1/RKE2 downstream clusters. This guide explains how to achieve this.

Note

This guide only shows a step-by-step guide for Rancher-managed (non-standalone) RKE2 clusters.

However, for a legacy RKE1 cluster, it’s even easier. You also need to edit the cluster YAML and change network.cni to none as described in the RKE 1 standalone guide, but there’s no need to copy over a Control Plane node local KubeConfig manually. Luckily, Rancher allows access to RKE1 clusters in Updating state, which are not ready yet. Hence, there’s no chicken-egg issue to resolve.

Prerequisites

Fully functioning Rancher Version 2.x instance
At least one empty Linux VM, to be used as initial downstream “Custom Cluster” (Control Plane) node
DNS record pointing to the Kubernetes API of the downstream “Custom Cluster” Control Plane node(s) or L4 load-balancer

Create a New Cluster

In Rancher UI, navigate to the Cluster Management page. In the top right, click on the Create button to create a new cluster.

On the Cluster creation page select to create a new Custom cluster:

../../_images/rancher_existing_nodes.png

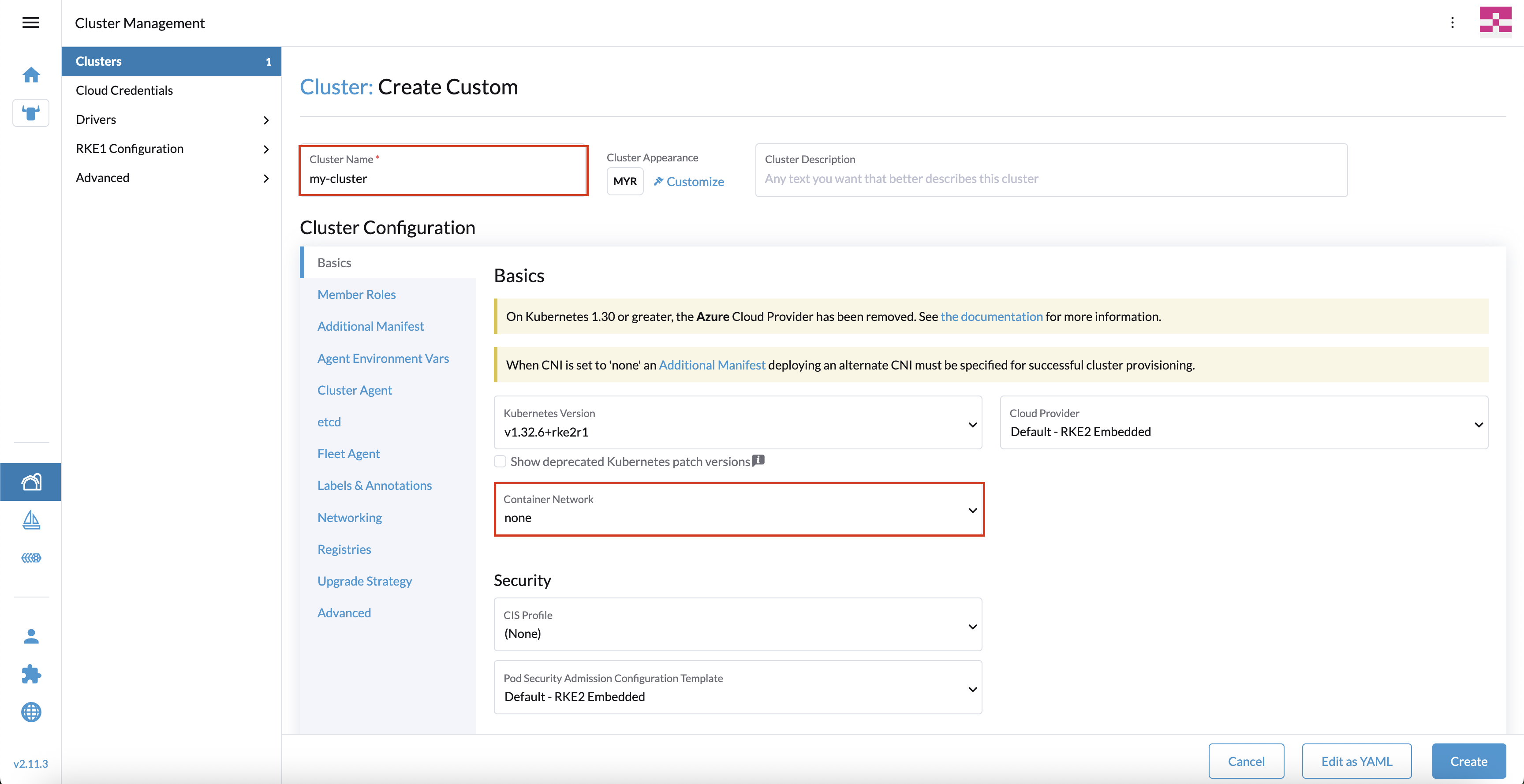

When the Create Custom page opens, provide at least a name for the cluster. Go through the other configuration options and configure the ones that are relevant for your setup.

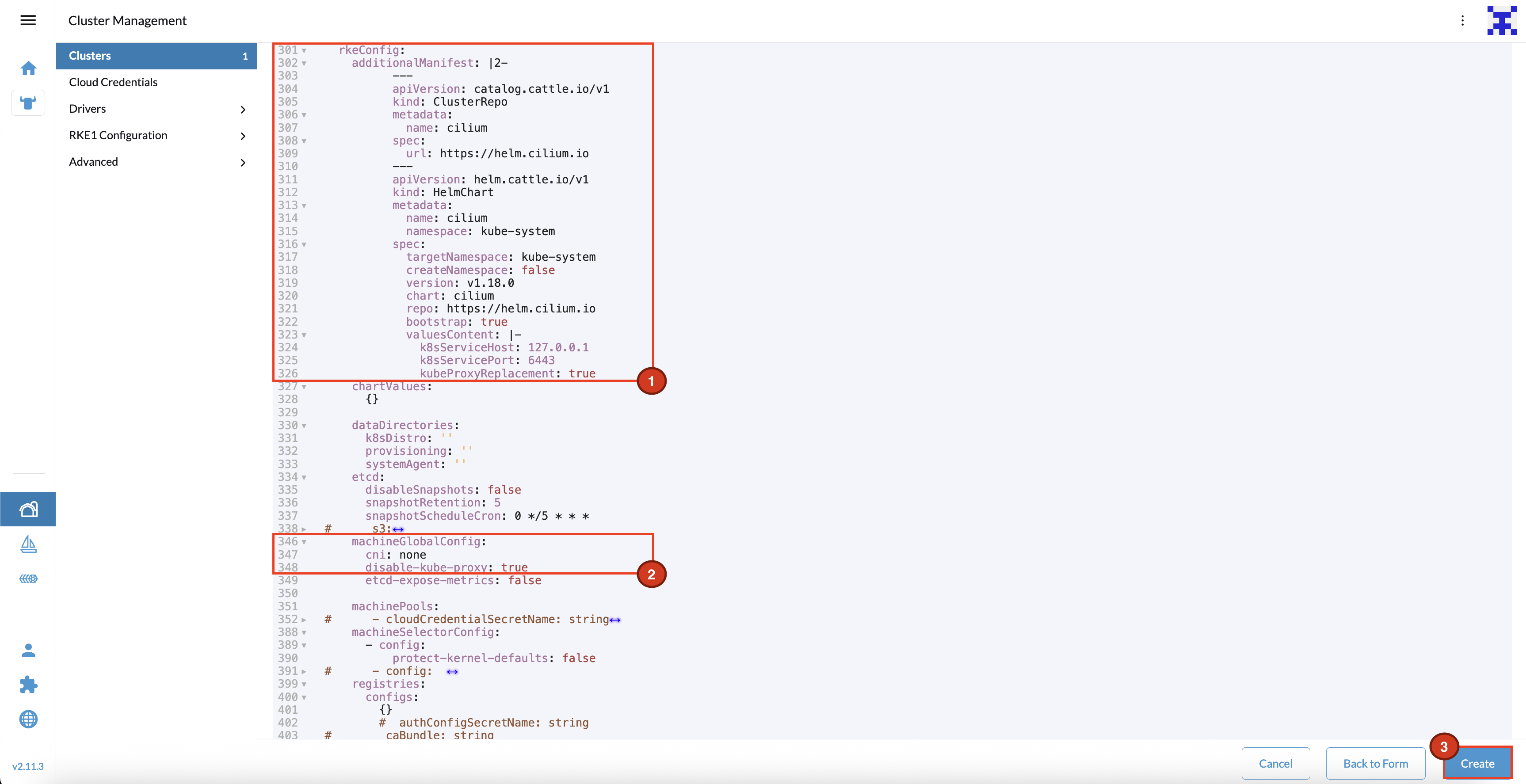

Next to the Cluster Options section click the box to Edit as YAML. The configuration for the cluster will open up in an editor in the window.

Within the Cluster CustomResource (provisioning.cattle.io/v1), the relevant parts to change are spec.rkeConfig.machineGlobalConfig.cni, spec.rkeConfig.machineGlobalConfig.tls-san, and optionally spec.rkeConfig.chartValues.rke2-calico and spec.rkeConfig.machineGlobalConfig.disable-kube-proxy:

../../_images/rancher_delete_network_plugin.png

It’s required to add a DNS record, pointing to the Control Plane node IP(s) or an L4 load-balancer in front of them, under spec.rkeConfig.machineGlobalConfig.tls-san, as that’s required to resolve a chicken-egg issue further down the line.

Ensure that spec.rkeConfig.machineGlobalConfig.cni is set to none and spec.rkeConfig.machineGlobalConfig.tls-san lists the mentioned DNS record:

../../_images/rancher_network_plugin_none.png

Optionally, if spec.rkeConfig.chartValues.rke2-calico is not empty, remove the full object as you won’t deploy Rancher’s default CNI. At the same time, change spec.rkeConfig.machineGlobalConfig.disable-kube-proxy to true in case you want to run Cilium without Kube-Proxy.

Make any additional changes to the configuration that are appropriate for your environment. When you are ready, click Create and Rancher will create the cluster.

../../_images/rancher_cluster_state_provisioning.png

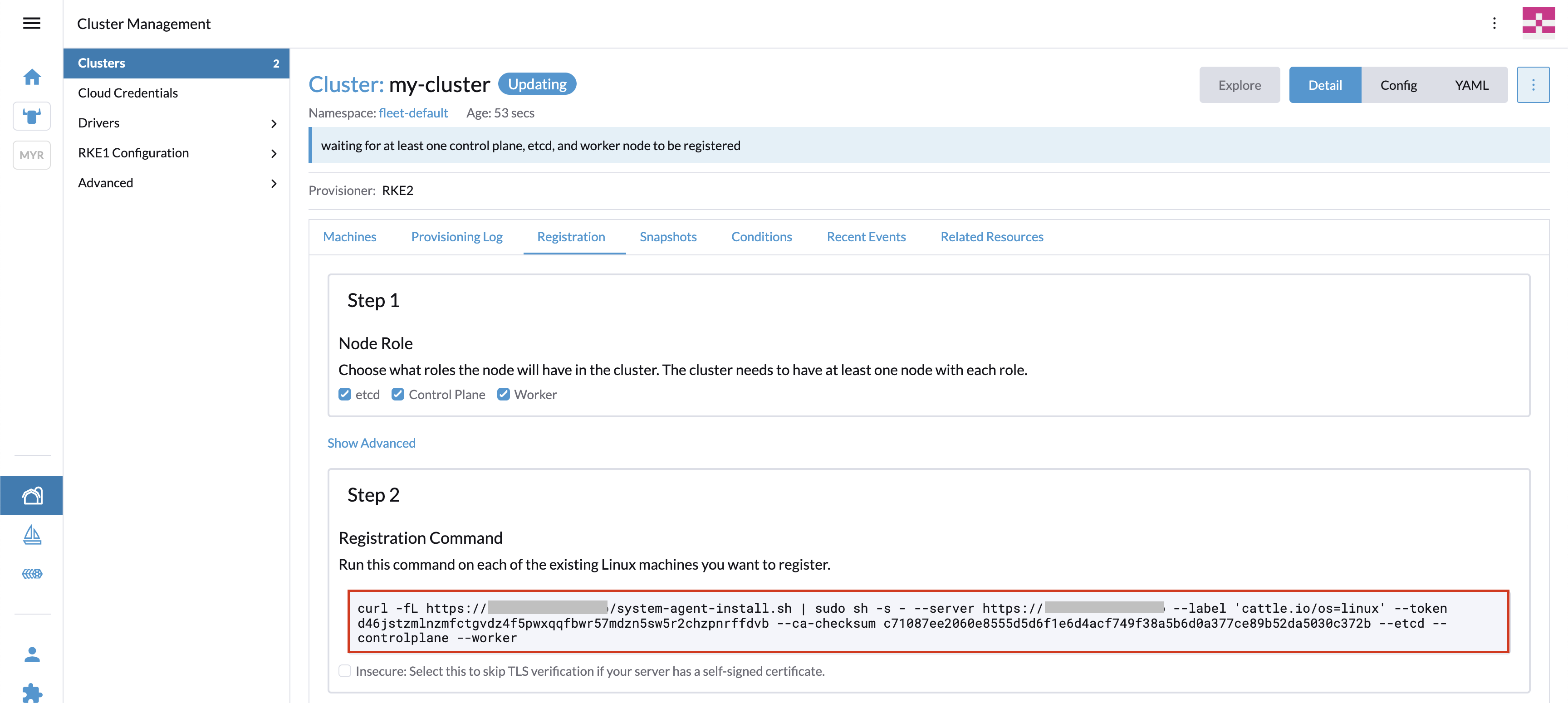

The cluster will stay in Updating state until you add nodes. Click on the cluster. In the Registration tab you should see the generated Registation command you need to run on the downstream cluster nodes.

Do not forget to select the correct node roles. Rancher comes with the default to deploy all three roles (etcd, Control Plane, and Worker), which is often not what you want for multi-node clusters.

A few seconds after you added at least a single node, you should see the new node(s) in the Machines tab. The machine will be stuck in Reconciling state and won’t become Active:

../../_images/rancher_node_not_ready.png

That’s expected as there’s no CNI running on this cluster yet. Unfortunately, this also means critical pods like rke2-coredns-rke2-coredns-* and cattle-cluster-agent-* are stuck in PENDING state. Hence, the downstream cluster is not yet able to register itself on Rancher.

As a next step, you need to resolve this chicken-egg issue by directly accessing the downstream cluster’s Kubernetes API, without going via Rancher. Rancher will not allow access to this downstream cluster, as it’s still in Updating state. That’s why you can’t use the downstream cluster’s KubeConfig provided by the Rancher management console/UI.

Copy /etc/rancher/rke2/rke2.yaml from the first downstream cluster Control Plane node to your jump/bastion host where you have helm installed and can access the Cilium Helm charts.

scp root@<cp-node-1-ip>:/etc/rancher/rke2/rke2.yaml .

Search and replace 127.0.0.1 (clusters[0].cluster.server) with the already mentioned DNS record pointing to the Control Plane / L4 load-balancer IP(s).

apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: LS0...S0K
    server: https://127.0.0.1:6443
name: default
contexts: {}

Check if you can access the Kubernetes API:

export KUBECONFIG=$(pwd)/my-cluster-kubeconfig.yaml
kubectl get nodes
NAME                    STATUS     ROLES                       AGE   VERSION
rancher-demo-node       NotReady   control-plane,etcd,master   44m   v1.27.8+rke2r1

If successful, you can now install Cilium via Helm CLI:

helm install cilium cilium/cilium --version 1.16.3 \
  --namespace kube-system \
  -f my-cluster-cilium-values.yaml

After a few minutes, you should see that the node changed to the Ready status:

kubectl get nodes
NAME                    STATUS   ROLES                       AGE   VERSION
rancher-demo-node       Ready    control-plane,etcd,master   48m   v1.27.8+rke2r1

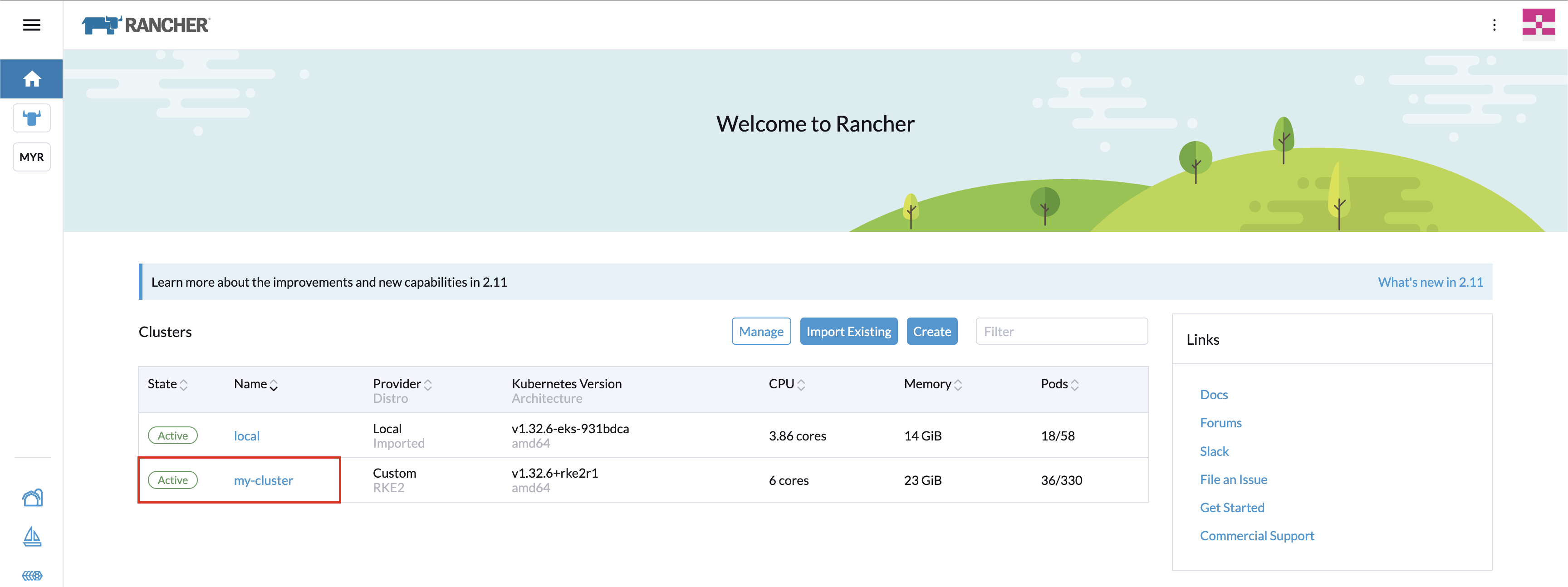

Back in the Rancher UI, you should see that the cluster changed to the healthy Active status:

../../_images/rancher_my_cluster_active.png

That’s it. You can now normally work with this cluster as if you installed the CNI the default Rancher way. Additional nodes can now be added straightaway and the “local Control Plane RKE2 KubeConfig” workaround is not required anymore.

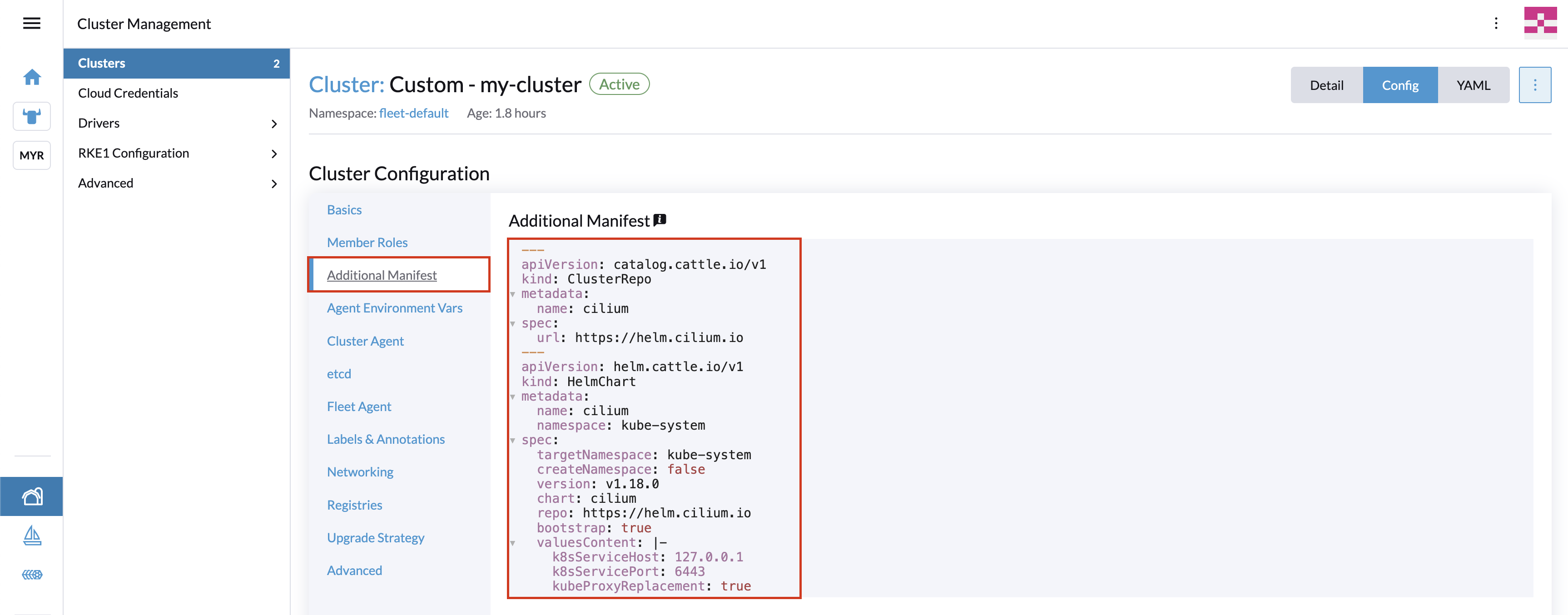

Optional: Add Cilium to Rancher Registries

One small, optional convenience item would be to add the Cilium Helm repository to Rancher so that, in the future, Cilium can easily be upgraded via Rancher UI.

You have two options available:

Option 1: Navigate to Cluster Management -> Advanced -> Repositories and click the Create button:

../../_images/rancher_add_repository.png

Option 2: Alternatively, you can also just add the Cilium Helm repository on a single cluster by navigating to <your-cluster> -> Apps -> Repositories:

../../_images/rancher_add_repository_cluster.png

For either option, in the window that opens, add the official Cilium Helm chart repository (https://helm.cilium.io) to the Rancher repository list:

../../_images/rancher_add_cilium_repository.png

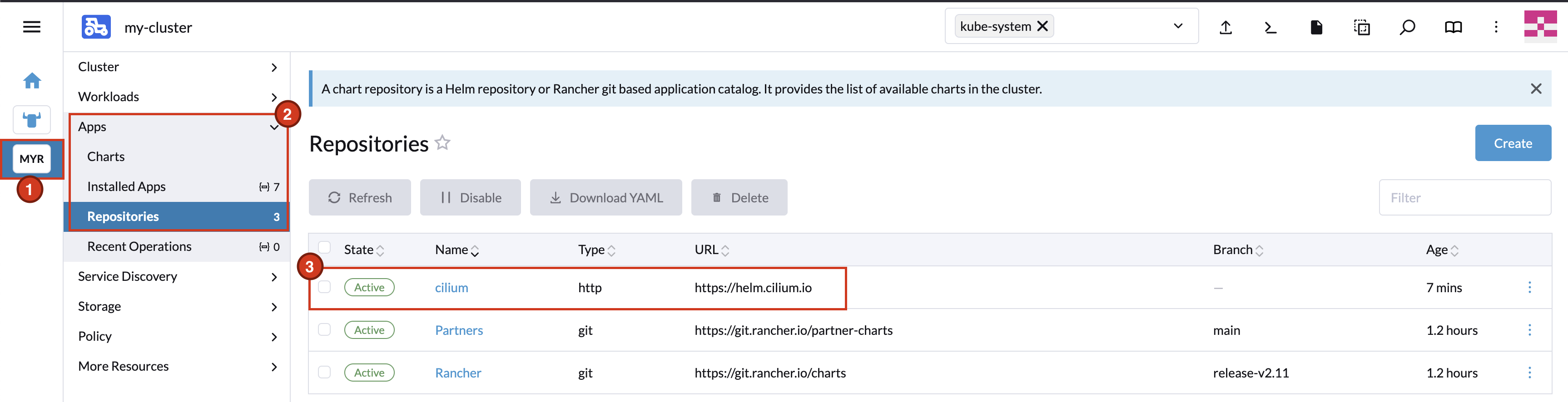

Once added, you should see the Cilium repository in the repositories list:

../../_images/rancher_repositories_list_success.png

If you now head to <your-cluster> -> Apps -> Installed Apps, you should see the cilium app. Ensure All Namespaces or Project: System -> kube-system is selected at the top of the page.

../../_images/rancher_cluster_cilium_app.png

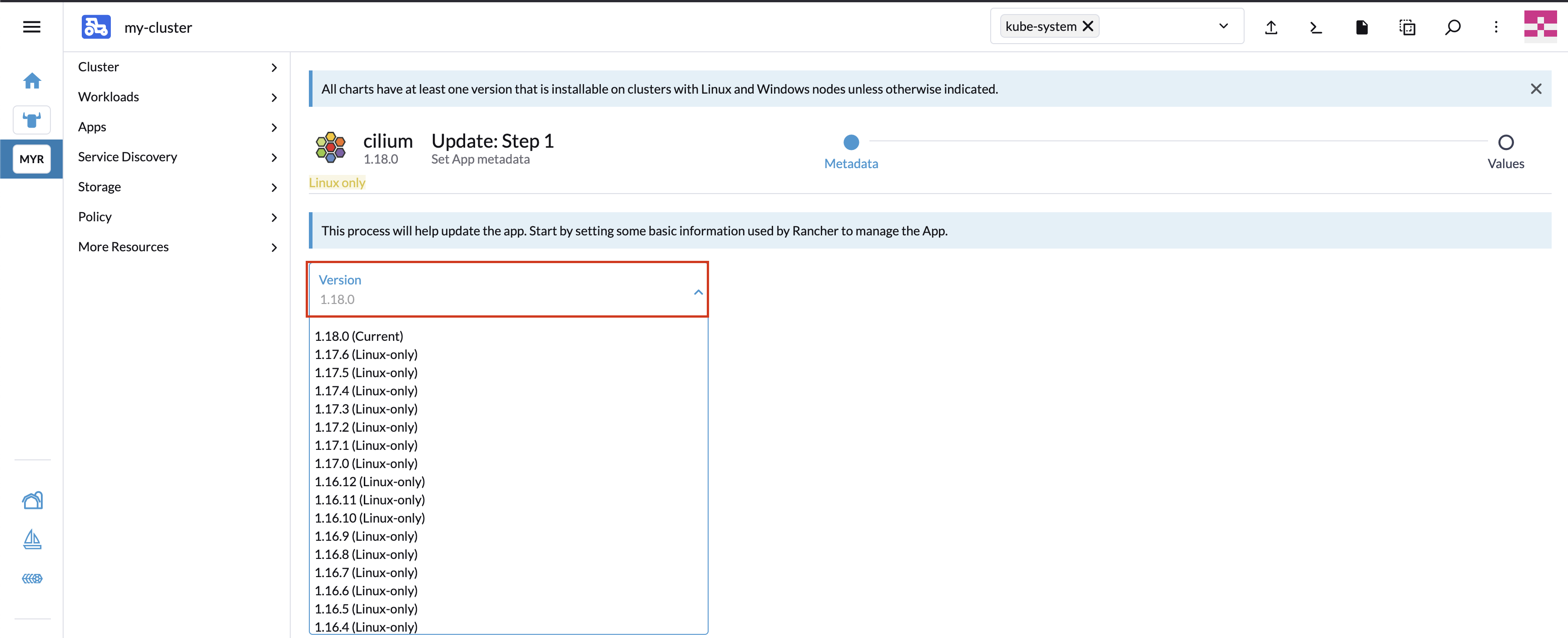

Since you added the Cilium repository, you will now see a small hint on this app entry when there’s a new Cilium version released. You can then upgrade directly via Rancher UI.
