Inspecting TLS Encrypted Connections with Cilium

This document serves as an introduction for how network security teams can use Cilium to transparently inspect TLS-encrypted connections. This TLS-aware inspection allows Cilium API-aware visibility and policy to function even for connections where client to server communication is protected by TLS, such as when a client accesses the API service via HTTPS. This capability is similar to what is possible to traditional hardware firewalls, but is implemented entirely in software on the Kubernetes worker node, and is policy driven, allowing inspection to target only selected network connectivity.

This type of visibility is extremely valuable to be able to monitor how external API services are being used, for example, understanding which S3 buckets are being accessed by an given application.

If you haven’t read the Introduction to Cilium & Hubble yet, we’d encourage you to do that first.

The best way to get help if you get stuck is to ask a question on Cilium Slack. With Cilium contributors across the globe, there is almost always someone available to help.

Setup Cilium

If you have not set up Cilium yet, follow the guide Cilium Quick Installation for instructions on how to quickly bootstrap a Kubernetes cluster and install Cilium. If in doubt, pick the minikube route, you will be good to go in less than 5 minutes.

Edit the ClusterRole for Cilium to give it access to Kubernetes secrets

$ kubectl edit clusterrole cilium -n kube-system

Add the following section at the end of the file:

- apiGroups:
  - ""
  - secrets
  - get

Deploy the Demo Application

To demonstrate TLS-interception we will use the same mediabot application that we used for the DNS-aware policy example. This application will access the Star Wars API service using HTTPS, which would normally mean that network-layer mechanisms like Cilium would not be able to see the HTTP-layer details of the communication, since all application data is encrypted using TLS before that data is sent on the network.

In this guide we will learn about:

  • Creating an internal Certificate Authority (CA) and associated certificates signed by that CA to enable TLS interception.

  • Using Cilium network policy to select the traffic to intercept using DNS-based policy rules.

  • Inspecting the details of the HTTP request using cilium monitor (accessing this visibility data via Hubble, and applying Cilium network policies to filter/modify the HTTP request is also possible, but is beyond the scope of this simple Getting Started Guide)

First off, we will create a single pod mediabot application:

$ kubectl create -f
$ kubectl wait pod/mediabot --for=condition=Ready
$ kubectl get pods
NAME                             READY   STATUS    RESTARTS   AGE
pod/mediabot                     1/1     Running   0          14s

A Brief Overview of the TLS Certificate Model

TLS is a protocol that “wraps” other protocols like HTTP and ensures that communication between client and server has confidentiality (no one can read the data except the intended recipient), integrity (recipient can confirm that the data has not been modified in transit), and authentication (sender can confirm that it is talking with the intended destination, not an impostor). We will provide a highly simplified overview of TLS in this document, but for full details, please see .

From an authentication perspective, the TLS model relies on a “Certificate Authority” (CA) which is an entity that is trusted to create proof that a given network service (e.g., is who they say they are. The goal is to prevents a malicious party in the network between the client and the server from intercepting the traffic and pretending to be the destination server.

In the case of “friendly interception” for network security monitoring, Cilium uses a model similar to traditional firewalls with TLS inspection capabilities: the network security team creates their own “internal certificate authority” that can be used to create alternative certificates for external destinations. This model requires each client workload to also trust this new certificate, otherwise the client’s TLS library will reject the connection as invalid. In this model, the network firewall uses the certificate signed by the internal CA to act like the destination service and terminate the TLS connection. This allows the firewall to inspect and even modify the application layer data, and then initiate another TLS connect to the actual destination service.

The CA model within TLS is based on cryptographic keys and certificates. Realizing the above model requires four primary steps:

  1. Create an internal certificate authority by generating a CA private key and CA certificate.

  2. For any destination where TLS inspection is desired (e.g., in the example below), generate a private key and certificate signing request with a common name that matches the destination DNS name.

  3. Use the CA private key to create a signed certificate.

  4. Ensure that all clients where TLS inspection is have the CA certificate installed so that they will trust all certificates signed by that CA.

  5. Given that Cilium will be terminating the initial TLS connection from the client and creating a new TLS connection to the destination, Cilium must be told the set of CAs that it should trust when validating the new TLS connection to the destination service.


In a non-demo environment it is EXTREMELY important that you keep the above private keys safe, as anyone with access to this private key will be able to inspect TLS-encrypted traffic (certificates on the other hand are public information, and are not at all sensitive). In the guide below, the CA private key does not need to be provided to Cilium at all (it is used only to create certificates, which can be done offline) and private keys for individual destination services are stored as Kubernetes secrets. These secrets should be stored in a namespace where they can be accessed by Cilium, but not general purpose workloads.

Generating and Installing TLS Keys and Certificates

Now that we have explained the high-level certificate model used by TLS, we will walk through the concrete steps to generate the appropriate keys and certificates using the openssl utility.

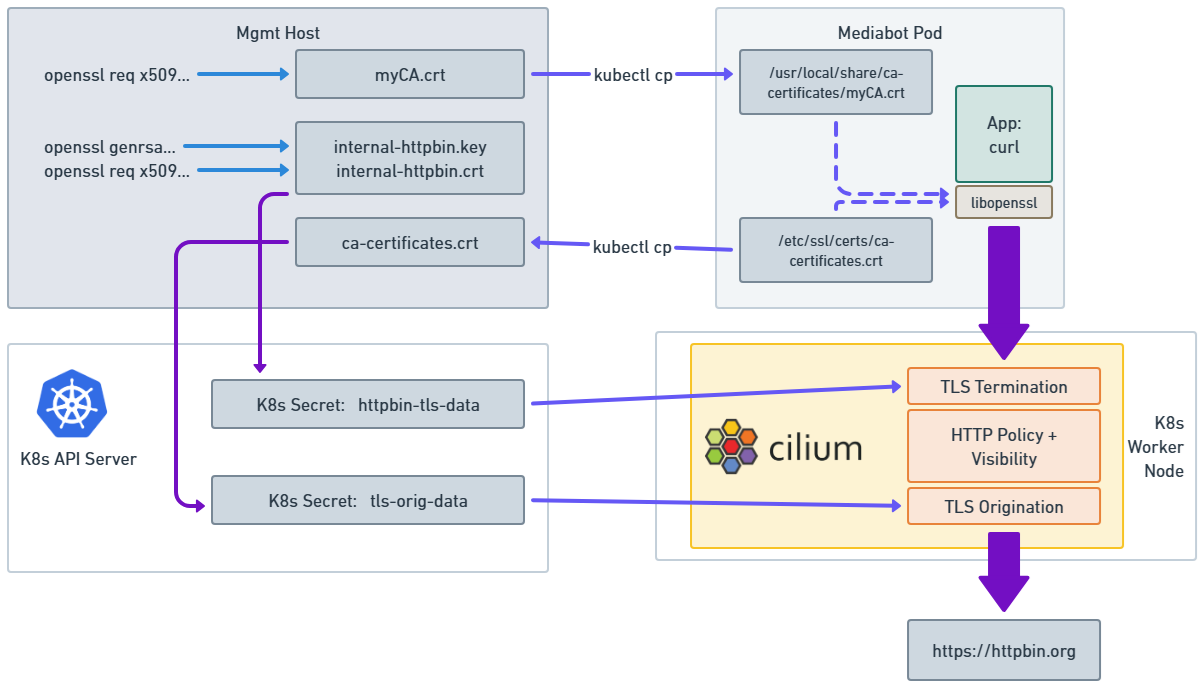

The following image describes the different files containing cryptographic data that are generated or copied, and what components in the system need access to those files:


You can use openssl on your local system if it is already installed, but if not a simple shortcut is to use kubectl exec to execute /bin/bash within any of the cilium pods, and then run the resulting openssl commands. Use kubectl cp to copy the resulting files out of the cilium pod when it is time to use them to create Kubernetes secrets of copy them to the mediabot pod.

Create an Internal Certificate Authority (CA)

Generate CA private key named ‘myCA.key’:

$ openssl genrsa -des3 -out myCA.key 2048

Enter any password, just remember it for some of the later steps.

Generate CA certificate from the private key:

$ openssl req -x509 -new -nodes -key myCA.key -sha256 -days 1825 -out myCA.crt

The values you enter for each prompt do not need to be any specific value, and do not need to be accurate.

Create Private Key and Certificate Signing Request for a Given DNS Name

Generate an internal private key and certificate signing with a common name that matches the DNS name of the destination service to be intercepted for inspection (in this example, use

First create the private key:

$ openssl genrsa -out internal-artii.key 2048

Next, create a certificate signing request, specifying the DNS name of the destination service for the common name field when prompted. All other prompts can be filled with any value.

$ openssl req -new -key internal-artii.key -out internal-artii.csr

The only field that must be a specific value is ensuring that Common Name is the exact DNS destination that will be provided to the client.

This example workflow will work for any DNS name as long as the toFQDNs rule in the policy YAML (below) is also updated to match the DNS name in the certificate.

Use CA to Generate a Signed Certificate for the DNS Name

Use the internal CA private key to create a signed certificate for named internal-artii.crt.

$ openssl x509 -req -days 360 -in internal-artii.csr -CA myCA.crt -CAkey myCA.key -CAcreateserial -out internal-artii.crt -sha256

Next we create a Kubernetes secret that includes both the private key and signed certificates for the destination service:

$ kubectl create secret tls artii-tls-data -n kube-system --cert=internal-artii.crt --key=internal-artii.key

Add the Internal CA as a Trusted CA Inside the Client Pod

Once the CA certificate is inside the client pod, we still must make sure that the CA file is picked up by the TLS library used by your application. Most Linux applications automatically use a set of trusted CA certificates that are bundled along with the Linux distro. In this guide, we are using an Ubuntu container as the client, and so will update it with Ubuntu specific instructions. Other Linux distros will have different mechanisms. Also, individual applications may leverage their own certificate stores rather than use the OS certificate store. Java applications and the aws-cli are two common examples. Please refer to the application or application runtime documentation for more details.

For Ubuntu, we first copy the additional CA certificate to the client pod filesystem

$ kubectl cp myCA.crt default/mediabot:/usr/local/share/ca-certificates/myCA.crt

Then run the Ubuntu-specific utility that adds this certificate to the global set of trusted certificate authorities in /etc/ssl/certs/ca-certificates.crt .

$ kubectl exec mediabot -- update-ca-certificates

This command will issue a WARNING, but this can be ignored.

Provide Cilium with List of Trusted CAs

Next, we will provide Cilium with the set of CAs that it should trust when originating the secondary TLS connections. This list should correspond to the standard set of global CAs that your organization trusts. A logical option for this is the standard CAs that are trusted by your operating system, since this is the set of CAs that were being used prior to introducing TLS inspection.

To keep things simple, in this example we will simply copy this list out of the Ubuntu filesystem of the mediabot pod, though it is important to understand that this list of trusted CAs is not specific to a particular TLS client or server, and so this step need only be performed once regardless of how many TLS clients or servers are involved in TLS inspection.

$ kubectl cp default/mediabot:/etc/ssl/certs/ca-certificates.crt ca-certificates.crt

We then will create a Kubernetes secret using this certificate bundle so that Cilium can read the certificate bundle and use it to validate outgoing TLS connections.

$ kubectl create secret generic tls-orig-data -n kube-system --from-file=ca.crt=./ca-certificates.crt

Apply DNS and TLS-aware Egress Policy

Up to this point, we have created keys and certificates to enable TLS inspection, but we have not told Cilium which traffic we want to intercept and inspect. This is done using the same Cilium Network Policy constructs that are used for other Cilium Network Policies.

The following Cilium network policy indicates that Cilium should perform HTTP-aware inspect of communication between the mediabot pod to

apiVersion: ""
kind: CiliumNetworkPolicy
  name: "l7-visibility-tls"
  description: L7 policy with TLS
      org: empire
      class: mediabot
  - toFQDNs:
    - matchName: ""
    - ports:
      - port: "443"
        protocol: "TCP"
          namespace: "kube-system"
          name: "artii-tls-data"
          namespace: "kube-system"
          name: "tls-orig-data"
        - {}
  - toPorts:
    - ports:
      - port: "53"
        protocol: ANY
          - matchPattern: "*"

Let’s take a closer look at the policy:

  • The endpointSelector means that this policy will only apply to pods with labels class: mediabot, org:empire to have the egress access.

  • The first egress section uses toFQDNs: matchName specification to allow TCP port 443 egress to

  • The http section below the toFQDNs rule indicates that such connections should be parsed as HTTP, with a policy of {} which will allow all requests.

  • The terminatingTLS and originatingTLS sections indicate that TLS interception should be used to terminate the initial TLS connection from mediabot and initiate a new out-bound TLS connection to

  • The second egress section allows mediabot pods to access kube-dns service. Note that rules: dns instructs Cilium to inspect and allow DNS lookups matching specified patterns. In this case, inspect and allow all DNS queries.

Note that with this policy the mediabot doesn’t have access to any internal cluster service other than kube-dns and will have no access to any other external destinations either. Refer to Overview of Network Policy to learn more about policies for controlling access to internal cluster services.

Let’s apply the policy:

$ kubectl create -f

Demonstrating TLS Inspection

Recall that the policy we pushed will allow all HTTPS requests from mediabot to, but will parse all data at the HTTP-layer, meaning that cilium monitor will report each HTTP request and response.

To see this, open a new window and run the following command to identity the name of the cilium pod (e.g, cilium-97s78) that is running on the same Kubernetes worker node as the mediabot pod.

Then start running cilium-dbg monitor in “L7 mode” to monitor for HTTP requests being reported by Cilium:

$ kubectl exec -it -n kube-system cilium-d5x8v -- cilium-dbg monitor -t l7

Next in the original window, from the mediabot pod we can access via HTTPS:

$ kubectl exec -it mediabot -- curl -sL ''

$ kubectl exec -it mediabot -- curl -sL ''

Looking back at the cilium-dbg monitor window, you will see each individual HTTP request and response. For example:

-> Request http from 2585 ([k8s:class=mediabot k8s:org=empire k8s:io.kubernetes.pod.namespace=default k8s:io.cilium.k8s.policy.serviceaccount=default k8s:io.cilium.k8s.policy.cluster=default]) to 0 ([reserved:world]), identity 24948->2, verdict Forwarded GET => 0
-> Response http to 2585 ([k8s:io.kubernetes.pod.namespace=default k8s:io.cilium.k8s.policy.serviceaccount=default k8s:io.cilium.k8s.policy.cluster=default k8s:class=mediabot k8s:org=empire]) from 0 ([reserved:world]), identity 24948->2, verdict Forwarded GET => 200

Refer to Layer 4 Examples and Layer 7 Examples to learn more about Cilium L4 and L7 network policies.


$ kubectl delete -f
$ kubectl delete cnp l7-visibility-tls
$ kubectl delete secret -n kube-system tls-orig-data
$ kubectl delete secret -n kube-system artii-tls-data
